Description

Pro-Quality Analog Mixing and Digital Recording in One Device
Built by musicians, for musicians.

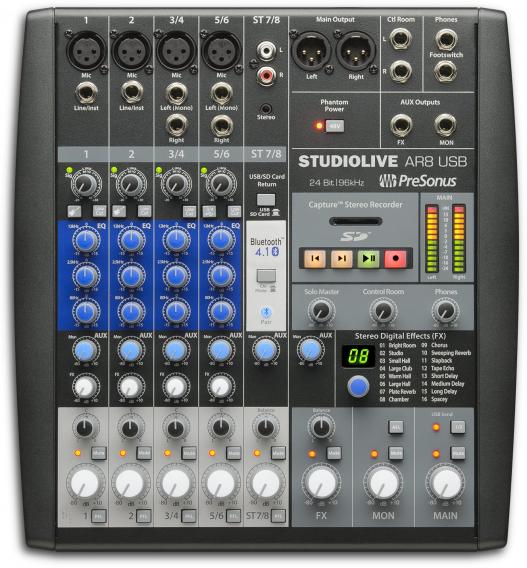

StudioLive AR8 USB 8-channel hybrid mixers make it simple to mix and record live shows, studio productions, band rehearsals, podcasts, and much more. This is a musicians mixer: lightweight, versatile, feature-rich, and packed with analog connections and digital tools, yet easy to learn and use. Mix with PreSonus famous Class A preamps and three-band EQ. Create multitrack recordings and fly in backing tracks with a 24-bit, 96 kHz, USB 2.0 digital audio interface. Record and playback in stereo with the integrated SD digital recorder. Stream program music wirelessly, using onboard Bluetooth. Compact and road-ready, StudioLive AR mixers provide a superior all-in-one solution for mixing and recording your performances.
Features
Channels and Buses
8-channel mixer
2 mono and 2 stereo channels, each with:
Level knob
Pan
Mute
PFL solo
1 stereo Super Channel (Ch. 7/8)
1 monitor bus with PFL solo
1 stereo effects bus
1 stereo effects return with:
Level knob
Dedicated monitor sends
Effects bypass footswitch jack
Inputs and Outputs
2 instrument inputs
8 balanced line inputs
4 balanced mic inputs with:
Class A microphone preamp
Global 48V phantom power
Stereo Super Channel with:
Stereo RCA inputs
1/8-inch stereo input
Switchable SD/USB stereo playback
Bluetooth 4.1 input
L/R XLR main outputs
1 Balanced TRS monitor output
1 Balanced TRS effects output
L/R Control Room outputs with level control
Headphone output with level control
Signal Processing
Highpass filter on every channel
3-band semi-parametric EQ (Channels 1-6)
Stereo effects processor with 16 presets
Recording Options
8×4 24-bit/96 kHz, USB 2.0 audio recording interface
Record every channel plus the main mix
2×2 SD recorder
Record main mix
Supports SD and SDHD formats up to 32 GB
Integrated Software
Capture recording software
Studio One 3 Artist recording and production software (DAW)
Power
Internal power supply
Standard IEC power connector
Physical
Sturdy metal construction
Rackmount kit optional
